screw conveyor
Screw conveyor is mainly used to transport all kinds of powders, granular, and small loose particles. It is very popular in conveying raw materials’ powder, semi-finished product and finished product in industries of food and feed.
Screw conveyor mainly has two types: moveable type and fixed type. It is made of seamless steel pipe and its ends are connected by flanges, thus ensuring good sealing.
- Large loading capacity, safe and reliable
- Strong adaptability, convenient installation, long service life

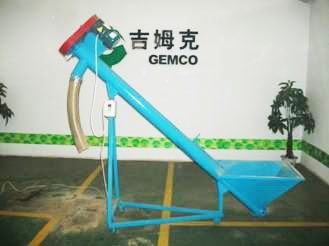

Moveable Screw Conveyor
Technical Parameter of Moveable Screw Conveyor
| Motor Type | Motor Power | Dimension (mm) | Packing Size (mm) | Weight | Loading Capacity | Lifting Height |
| YVP90L-4 | 1.5kw | 2490*610*2110 | 2800*850*740 | 180kg | 1000kg/h | 1500mm |
Features of Moveable Screw Conveyor
- It is easy to move as it has wheels.
- Its transportation cost is low as it is detachable and needs small packing size.
- Variable frequency motor controls rotating speed and transporting capacity.

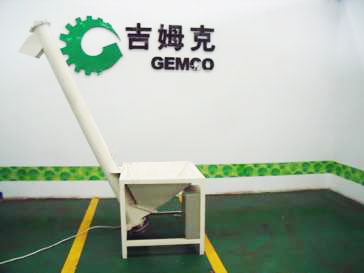

Fixed Screw Conveyor
Technical Parameter of Fixed Screw Conveyor
| Motor Type | Motor Power | Dimension (mm) | Packing Size (mm) | Weight | Loading Capacity | Lifting Height |
| YVP90L-4 | 1.5kw | 1650*730*1950 | 2550*750*1120 | 180kg | 1000kg/h | 1400mm |
The fixed screw conveyor has strong stability. It also has a variable frequency motor, which makes rotating speed and transporting capacity adjustable.
